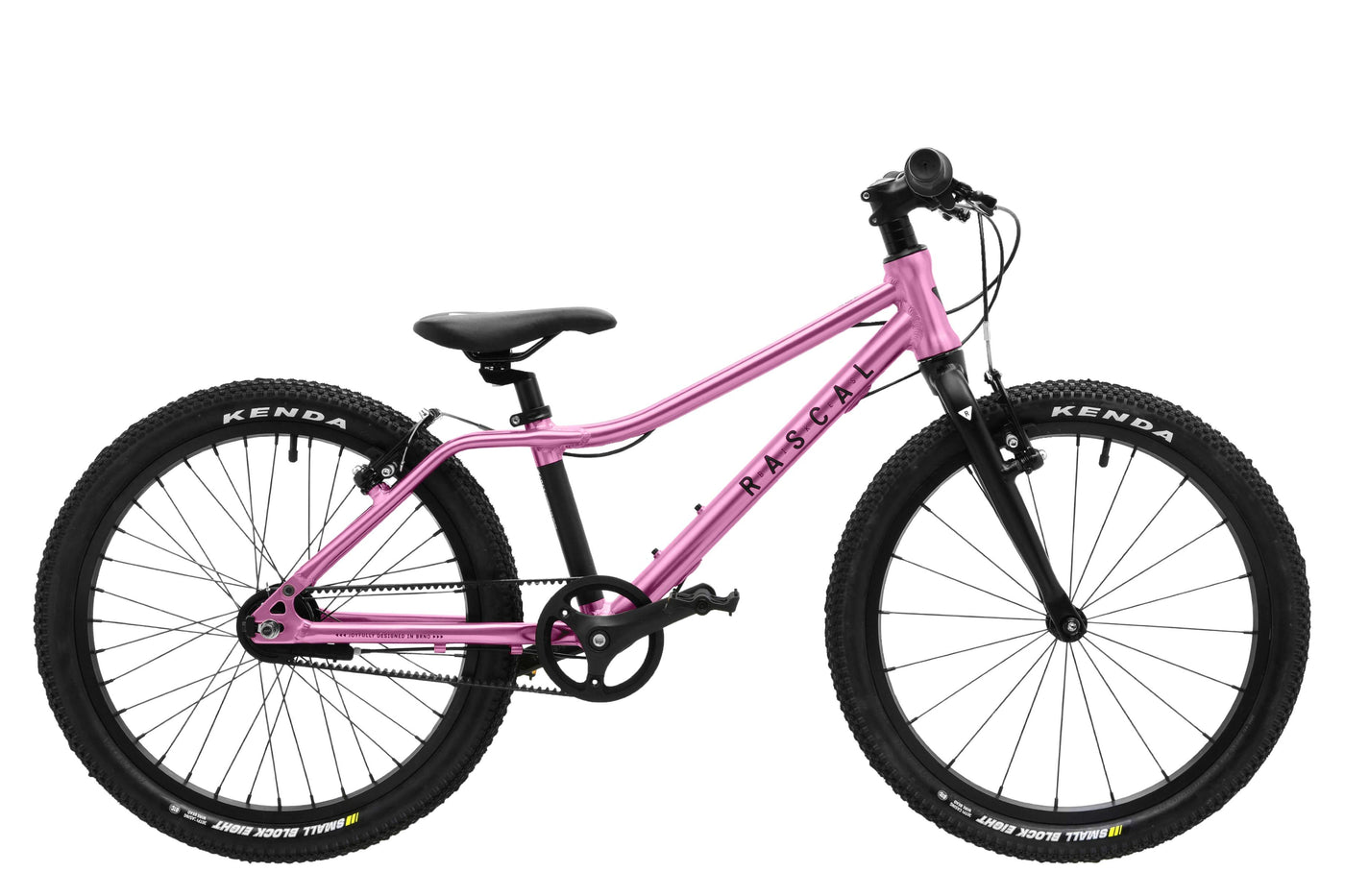

Rascal Classic 20 raspberry
Designed meticulously from the ground up, Rascal bikes focus on minimising weight with an upright geometry to optimise a comfortable riding position.
A narrow fork and narrow tail end (for a responsive, nimble ride in tight spaces), reduced Q-factor (tailored to smaller hips), and a low standover height are just some of the subtle technological features that make it easier and more fun to learn to ride a Rascal bike!
Unique features include a transparent tinted lacquer finish, which lets the details and exclusivity of the aluminium frame stand out, and a Sturmey Archer 3-speed internal gear hub, which seamlessly integrates with the Gates® PowerGrip™ HTD® toothed belt drive.
This gear set-up offers a safe, silent, dependable, no-mess, maintenance-free solution to the more conventional derailleur gear and metal chain.
Rascal - Joyfully designed in BRNO.
- Frame: Brushed aluminium / T6 6061 series heat-treated / TIG welded & butted / Internal cable routing
- Fork: Aluminium alloy / Straight & slightly tapered leg / 1 1/8" steerer
- Headset: Fully-integrated threadless 1" alloy A-head / Industrial-grade sealed bearings
- Shifter: Sturmey Archer TSS30B twist-grip / 1x3 speed
- Freewheel: Sturmey Archer/Gates® PowerGrip™ belt drive system
- Chain: Gates® PowerGrip™ HTD® 976-8M neoprene & reinforced fibreglass toothed belt / 976mm length / 17mm width
-
Chainset: Single forged alloy chainring / Forged alloy 115mm crank arms / Narrow Q-factor
- Chainguard: Alloy double-sided chainring guard
- Pedals: Rascal resin junior platform / Industrial-grade sealed bearings
- Bottom Bracket: 3-piece crank system / Square taper / Sealed cartridge bearings
- Rims: Single-wall alloy / Front 20H / Rear 36H
- Front Hub: Hollow alloy 20H / Industrial-grade sealed bearings / 5mm Allen hex bolt internal fixing
- Rear Hub: Sturmey Archer RS-RF3 3-speed internal gears / Alloy 36H / Industrial-grade sealed bearings / 15mm external nut fixing / Dual belt tensioners
- Spokes: Steel 14G
- Tyres: Rascal Hartex 20" x 1.95"
- Front Brake: Tektro alloy linear pull V-type
- Rear Brake: Tektro alloy linear pull V-type
- Brake Levers: Tektro JL510-TS alloy / Junior specific with reach adjust
- Handlebar: Rascal alloy / 540mm wide / Mid-rise / 31.8mm bar bore
- Grips: Ergonomic comfort / 110mm length
- Stem: Alloy 4-bolt A-head / 31.8mm steerer / 45mm extension / 31.8mm bar bore
- Saddle: Rascal junior / 210mm length / 115mm width
- Seatpost: Zoom alloy micro-adjust / 25.4mm x 210mm
